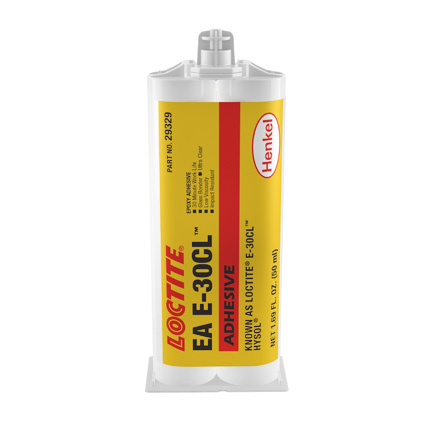

Henkel Loctite EA E-30CL Epoxy Adhesive Clear 50 mL Cartridge

Part number: 237116
Henkel Loctite EA E-30CL Epoxy Adhesive Clear 50 mL Cartridge

Due to raw material shortages, this product is unavailable to purchase on the web. Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

Henkel Loctite EA E-30CL is a low viscosity, impact resistant, industrial grade epoxy adhesive. When cured it can withstand exposure to a wide range of chemicals and solvents, and maintains stability over a wide temperature range. 50 mL Cartridge.

<p>Henkel Loctite&nbsp;EA E-30CL is a low viscosity, impact resistant, industrial grade epoxy adhesive. When cured it can withstand exposure to a wide range of chemicals and solvents, and maintains stability over a wide temperature range. 50 mL Cartridge.</p>
Typical Use: Used for bonding, small potting, staking and laminating applications where optical clarity and excellent structural, mechanical, and electrical insulating properties are required. Bonds most materials including glass, optical fibers, ceramics, metals, and many rigid plastics.
Chemical Composition: Resin: Epoxy; Hardener: Amine
Color: Clear
Components: 2 part
Cure System: Room Temperature
Cure Time: 3 to 24h @ room temperature
Dielectric Strength: 500 V/mil @ 25 °C
Elongation: 8% @ 25 °C
Flash Point: >93 °C
Hardness: 85 D @ 25 °C
Mix Ratio: 2:1 by volume; 100:46 by weight
Shear Strength: Up to 4,270 @ 22 °C depending on substrate used.
Specific Gravity: Resin: 1.1 @ 25 °C; Hardener: 1 @ 25 °C
Tack Free Time: 160min @ low humidity
Tensile Strength: 8,000 psi @ 25 °C
Viscosity: Resin: 10,500 @ 25 °C, Hardener: 2,250 @ 25 °C
Working Time: 30min @ 25 °C
