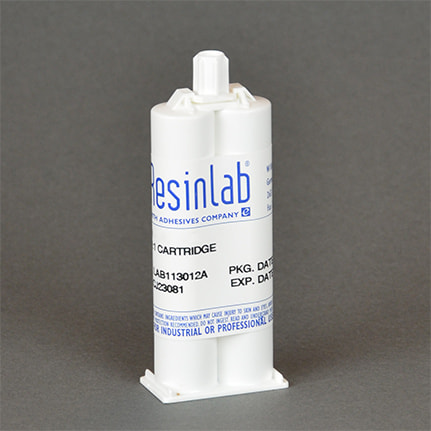

ResinLab EP1305 Epoxy Encapsulant Black 50 mL Cartridge

Part number: EP1305 BLACK 50ML
ResinLab EP1305 Epoxy Encapsulant Black 50 mL Cartridge

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

ResinLab EP1305 Black is a two component, room temperature or heat curing, urethane epoxy that is used for bonding metal, ceramics, and PVC. It is thixotropic, non-sagging, and toughened. 50 mL Cartridge.

ResinLab EP1305 Black is a two component, room temperature or heat curing, urethane epoxy that is used for bonding metal, ceramics, and PVC. It is thixotropic, non-sagging, and toughened. 50 mL Cartridge.
Typical Use: The system has a thixotropic non-sag viscosity but is easily dispensed from side-by-side cartridge systems. It was especially formulated to a 1A:1B mix ratio for use in automatic mixing equipment and dispensers with static mixers.
Chemical Composition: Epoxy
Color: Black
Components: 2 part
Cure System: Room Temperature/Heat
Cure Time: 2 to 4h @ room temperature; 2h @ 65 °C; 1h @ 100 °C
Dielectric Strength: 440 V/mil
Elongation: 10% @ break
Flash Point: >93.3 °C
Hardness: 70 D
Mix Ratio: 1:1 by volume; 1.15:1 by weight
Peel Strength: 15 pli
Service Temperature: -40 to 150 °C
Shear Strength: 1,000
Specific Gravity: Mixed: 1.08
Tensile Strength: 3,500 psi
Viscosity: Mixed: 109,000
Volume Resistivity: 2.1 x 10^15 ohm-cm
