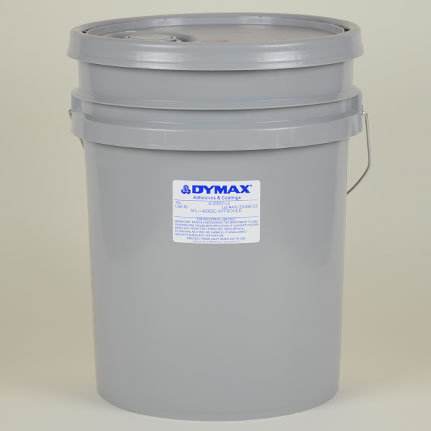

Dymax Multi-Cure 9-20557-LV UV Curing Conformal Coating Clear 15 L Pail

Part number: 9-20557-LV 15 LITER PAIL Manufacturer SKU: 9-20557-LV/15LPSTD
Dymax Multi-Cure 9-20557-LV UV Curing Conformal Coating Clear 15 L Pail
Quantity Price
1 $2,942.61 2942.610000000 CAD New Limited Availability 9-20557-LV 15 LITER PAIL
2 $2,732.42 2732.420000000 CAD New Limited Availability 9-20557-LV 15 LITER PAIL
3+ $2,560.45 2560.450000000 CAD New Limited Availability 9-20557-LV 15 LITER PAIL
Usually Ships in 2-3 Business Weeks. Subject to prior sales. Non-returnable product. Canceled orders may incur a fee at the supplier’s discretion. Product not sold online in Quebec.

DYMAX Multi-Cure 9-20557 Conformal Coating is a one component, UV light and heat curing, acrylated urethane that is used for coating electronic devices and print circuit boards. It offers flexibility, solvent free, low elastic modulus, and resistance to thermal shock. 15 L Pail.

DYMAX Multi-Cure 9-20557 Conformal Coating is a one component, UV light and heat curing, acrylated urethane that is used for coating electronic devices and print circuit boards. It offers flexibility, solvent free, low elastic modulus, and resistance to thermal shock. 15 L Pail.
Typical Use: Used for potting, encapsulating, sealing and bonding, can be used when adhesion to solder masks is required.
Brand: Multi-Cure
Chemical Composition: Urethane acrylate
Color: Clear to Light Yellow
Components: 1 part
Cure System: UV
Cure Time: Actual cure time typically is 3 to 5 times fixture time.
Elongation: 140% @ break
Flash Point: 93.3 °C
Hardness: 70 D
Key Specifications: Mil-I-46058-C, Type UR, UL 746C, IPC-CC-830-A If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distributor.
Service Temperature: -55 to 175 °C
Specific Gravity: 1.06
Tensile Strength: 3,500 psi
Viscosity: 850
Volume Resistivity: 2.83 x 10^15 ohm-cm
