Part number: 9-20351-UR 30ML MR SYRINGE
Manufacturer SKU: 9-20351-UR/30SYMR
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

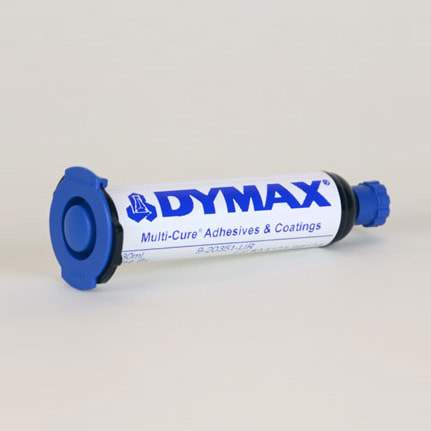

DYMAX Multi-Cure 9-20351-UR Conformal Coating Clear is a one component, UV light and heat curing, acrylated urethane that is used to as a coating for electronic devices and print circuit boards. It offers flexibility, low VOC, high viscosity, isocyanate free, and is resistant to thermal shock. 30 ml MR Syringe.
| Typical Use: | Conformal Coating for electronic circuit board materials. |
| Brand: | Multi-Cure |
| Chemical Composition: | Acrylated urethane |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | UV |
| Cure Time: | Actual cure time typically is 3 to 5 times fixture time. |
| Dielectric Strength: | 20 kV/mm |
| Elongation: | 220% @ break |
| Flash Point: | 108 °C |
| Hardness: | 60 D |
| Service Temperature: | -54 to 150 °C |
| Tensile Strength: | 1,800 psi @ break |
| Viscosity: | 13,500 |
| Volume Resistivity: | 500 x 10^12 ohm-cm |
-
