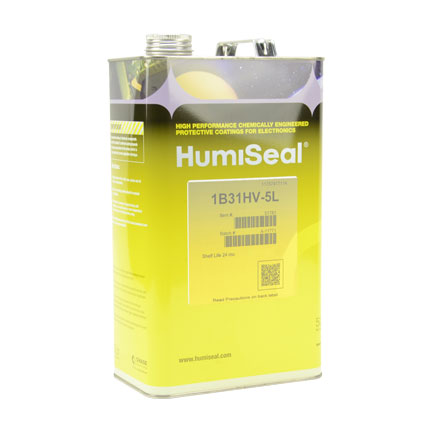

HumiSeal 1B31HV Acrylic Conformal Coating 5 L Jug

Part number: 1B31HV 5 LITER Manufacturer SKU: 51781
HumiSeal 1B31HV Acrylic Conformal Coating 5 L Jug

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

HumiSeal® 1B31HV Acrylic Conformal Coating is a one component, fast curing acrylic coating that is used for circuit assemblies and can be easily repaired. It offers flexibility, moisture and environmental protection, and fluoresces under UV light to aid inspection. It can be applied by spraying, brushing, or dipping methods. 5 L Jug.

<p>HumiSeal® 1B31HV Acrylic Conformal Coating is a one component, fast curing acrylic coating that is used for circuit assemblies and can be easily repaired. It offers flexibility, moisture and environmental protection, and fluoresces under UV light to aid inspection. It can be applied by spraying, brushing, or dipping methods. 5 L Jug.</p>
Typical Use: Acrylic conformal coating that provides excellent moisture and environmental protection for printed circuit assemblies.
Chemical Composition: Acrylic
Components: 1 part
Cure System: Room Temperature/Heat
Cure Time: 24h @ room temperature; 30min @ 76 °C
Flash Point: -1 °C
Key Specifications: HumiSeal 1B31HV™ is in full compliance with the RoHS Directive 2002/95/EC.
Specific Gravity: 0.88
Tack Free Time: 10min
Viscosity: 420 ± 20
