Part number: EP1282 BLACK 400ML
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

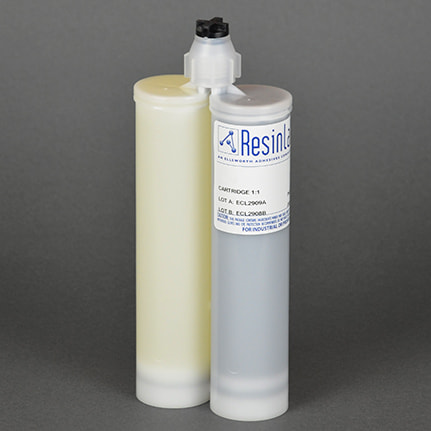

ResinLab EP1282 Black is a two component, room temperature or heat curing, unfilled, flame resistant, epoxy encapsulant that is used for medium castings. It offers good wetting, semi-rigid polymer, high gloss surface, good thermal shock and cycling properties. It is resistant to bases, acids, water, and most organic solvents. 400 mL Cartridge.
| Typical Use: | Designed for medium sized castings. |
| Chemical Composition: | Epoxy |
| Color: | Black |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24 to 48h @ 25 °C; 1h @ 65 °C; 20min @ 100 °C |
| Dielectric Strength: | 770 V/mil |
| Elongation: | 56% |
| Flash Point: | >93 °C |
| Hardness: | 65 D |
| Mix Ratio: | 1:1 by volume; 1.17:1 by weight |
| Service Temperature: | -40 to 150 °C |
| Shear Strength: | 1,500 |
| Specific Gravity: | Part A: 1.14; Part B: 0.98; Mixed: 1.06 |
| Tensile Strength: | 2,400 psi |
| Thermal Conductivity: | <0.2 W/mK |
| Viscosity: | Part A: 7,500; Part B: 2,000; Mixed: 3,000 |
| Volume Resistivity: | 1.3 x 10^14 ohm-cm |
| Working Time: | 1h |
-
-
-
-
