Part number: W-19 RED 8 LB. GALLON
Manufacturer SKU: 1189133
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

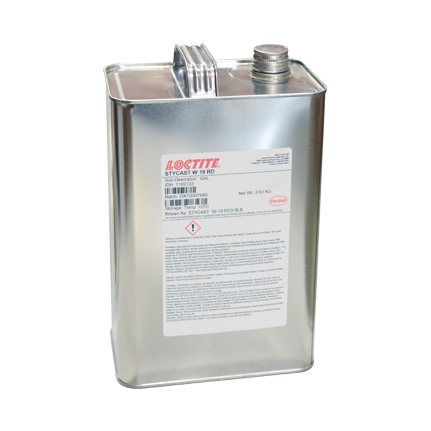

Henkel Loctite STYCAST W 19 Red, formerly Emerson and Cuming, is a two component, unfilled, epoxy impregnant that is used for tightly wrapped coils and small device potting applications. It has very low viscosity and contains 100% solids. It can be applied with spraying, brushing, or dipping methods. 1 gal Pail.
| Typical Use: | Used as an impregnant for tightly wrapped coils, small device potting, or as a surface coating applied by dip, brush, or spray. |
| Brand: | STYCAST |
| Chemical Composition: | Epoxy |
| Color: | Red |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | Catalyst 9: 16 to 24h @ 25 °C; Catalyst 11: 8 to 16h @ 80 °C |
| Dielectric Strength: | Catalyst 9: 15.7 kV/mm; Catalyst 11: 15.7 kV/mm |
| Flash Point: | 76.6 °C |
| Hardness: | Catalyst 9: 78 D; Catalyst 11: 78 D |
| Mix Ratio: | Catalyst 9: 100:16.5 by volume, 100:15 by weight; Catalyst 11: 100:17.5 by volume, 100:17.5 by weight |
| Service Temperature: | Catalyst 9: -40 to 130 °C; Catalyst 11: -55 to 155 °C |
| Specific Gravity: | 1.2 |
| Viscosity: | Catalyst 9: 200; Catalyst 11: 200 |
| Volume Resistivity: | Catalyst 9: >1 x 10^12 ohm-cm; Catalyst 11: >1 x 10^12 ohm-cm |
| Working Time: | Catalyst 9: 45min @ 25 °C; Catalyst 11: >4h @ 25 °C |
-
-
-
-
