Part number: L-28 2 LB QUART
Manufacturer SKU: 1188991
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

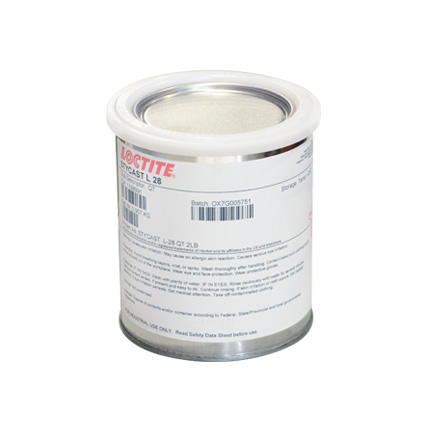

Henkel Loctite STYCAST L 28 Clear Red, formerly Emerson and Cuming, is a two component, unfilled epoxy encapsulant that is used for impregnating, laminating, and encapsulating. 1 qt Can.
| Typical Use: | Used as an encapsulating and impregnating resin; it has also been used as a laminating resin in combination with glass cloth or mat. |
| Brand: | STYCAST |
| Chemical Composition: | Epoxy |
| Color: | Red |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | Catalyst 9: 16 to 24h @ 25 °C; Catalyst 11: 8 to 16h @ 80 °C; Catalyst 24LV: 24h @ 25 °C |
| Dielectric Strength: | Catalyst 9: 15.7 kV/mm; Catalyst 11: 15.7 kV/mm; Catalyst 24LV: 15.7 kV/mm |
| Flash Point: | >93.3 °C |
| Hardness: | Catalyst 9: 85 D; Catalyst 11: 87 D; Catalyst 24LV: 78 D |
| Mix Ratio: | Catalyst 9: 100:14.5 by weight; Catalyst 11: 100:17 by weight; Catalyst 24LV: 100:29.5 by weight |
| Service Temperature: | Catalyst 9: -40 to 130 °C; Catalyst 11: -55 to 155 °C; Catalyst 24LV: -65 to 105 °C |
| Specific Gravity: | 1.17 |
| Viscosity: | Base:13,000 |
| Volume Resistivity: | Catalyst 9: >1 x 10^14 ohm-cm; Catalyst 11: >1 x 10^14 ohm-cm; Catalyst 24LV: >1 x 10^14 ohm-cm |
| Working Time: | Catalyst 9: 45min; Catalyst 11: >4h; Catalyst 24LV: 30min |
