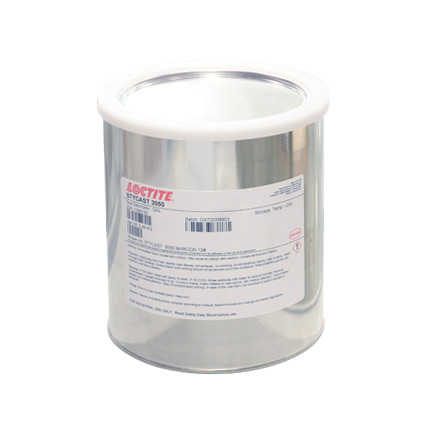

Henkel Loctite STYCAST 3050 Maroon, formerly Emerson and Cuming, is a two component, filled, epoxy encapsulant that is used for potting, encapsulating, and reaching tight spaces between components. It offers a very low viscosity, non-abrasive, and machinability. 1 gal Pail. Catalyst sold separately.
Typical Use: | Used for potting and encapsulating applications where physical spacing between elements is very small; such as high density circuit assemblies, coil windings and items of a comparable nature. |
Brand: | STYCAST |
Chemical Composition: | Epoxy |
Color: | Maroon |
Components: | 2 part |
Cure System: | Room Temperature/Heat |
Cure Time: | Catalyst 9: 16 to 24h @ 25 °C; Catalyst 11: 8 to 16h @ 80 °C |
Dielectric Strength: | Catalyst 9: 15.7 kV/mm; Catalyst 11: 15.7 kV/mm |
Flash Point: | 82.2 °C |
Hardness: | Catalyst 9: 88 D; Catalyst 11: 88 D |
Mix Ratio: | Catalyst 9: 100:12 by volume, 100:7.5 by weight; Catalyst 11: 100:13 by volume, 100:9 by weight |
Service Temperature: | Catalyst 9: -40 to 130 °C; Catalyst 11: -55 to 155 °C |
Specific Gravity: | 1.7 |
Tensile Strength: | Catalyst 9: 7,800 psi; Catalyst 11: 5,500 psi |
Thermal Conductivity: | Catalyst 9: 0.4 W/mK; Catalyst 11: 0.4 W/mK |
Viscosity: | Catalyst 9: 600; Catalyst 11: 300 |
Volume Resistivity: | Catalyst 9: 5 x 10^15 ohm-cm @ 25 °C; Catalyst 11: 2 x 10^14 ohm-cm @ 25 °C, 3 x 10^11 ohm-cm @ 100 °C |
Working Time: | Catalyst 9: 45min @ 25 °C; Catalyst 11: >4h @ 25 °C |
