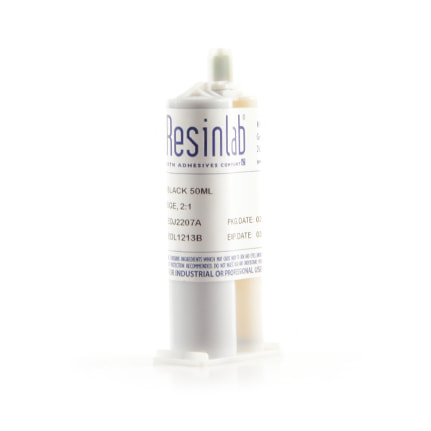

ResinLab EP1238 Epoxy Adhesive Black 50 mL Cartridge

Part number: EP1238 BLACK 50ML
ResinLab EP1238 Epoxy Adhesive Black 50 mL Cartridge

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

ResinLab EP1238 Black is a two component, room temperature and heat curing, epoxy/acrylic adhesive that is used for bonding plastics and metals. It offers controlled flow, good wetting, semi-rigid material, and resistance to salt solutions, water, vibrations, impact, organic and inorganic solvents. 50 mL Cartridge.

ResinLab EP1238 Black is a two component, room temperature and heat curing, epoxy/acrylic adhesive that is used for bonding plastics and metals. It offers controlled flow, good wetting, semi-rigid material, and resistance to salt solutions, water, vibrations, impact, organic and inorganic solvents. 50 mL Cartridge.
Typical Use: Designed for bonding metals and plastics.
Chemical Composition: Acrylic/epoxy hybrid
Color: Black
Components: 2 part
Cure System: Room Temperature/Heat
Cure Time: 6 to 12h @ 25 °C; 2h @ 65 °C; 30min @ 100 °C
Dielectric Strength: 888 V/mil
Elongation: 3% to 4% @ break
Flash Point: Part A: 249 °C; Part B: >93 °C
Hardness: 80 D
Mix Ratio: 2:1 by volume; 2.12:1 by weight
Peel Strength: 25 pli
Service Temperature: -40 to 150 °C
Shear Strength: 280 to 4,600
Specific Gravity: Mixed: 1.13
Tensile Strength: 8,500 psi
Thermal Conductivity: <0.2 W/mK
Viscosity: Mixed: 47,000
Volume Resistivity: 2.12 x 10^16 ohm-cm
