Part number: 235021

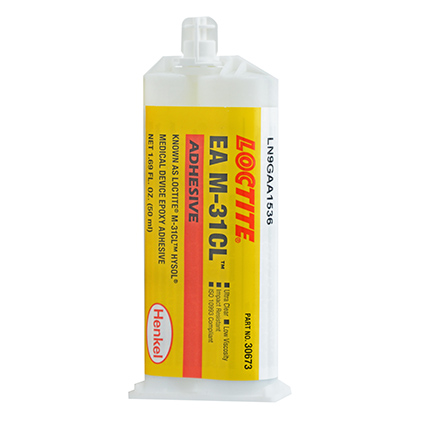

Henkel Loctite EA M-31CL is a two component, low viscosity, room temperature curing epoxy adhesive. When cured it is resistant to a wide range of chemicals and solvents and has excellent stability over a wide range of temperatures. 50 mL Cartridge.
| Typical Use: | Used for bonding, small potting, staking and laminating applications where optical clarity and excellent structural, mechanical, and electrical insulating properties are required. |
| Chemical Composition: | Epoxy |
| Color: | Clear to Light Yellow |
| Components: | 2 part |
| Cure System: | Room Temperature |
| Cure Time: | 3 to 24h @ 25 °C depending on the bondline gap. |
| Dielectric Strength: | 19.7 kV/mm |
| Elongation: | 8% |
| Flash Point: | Resin: >93 °C; Hardener: >120 °C |
| Hardness: | 80 to 90 D |
| Mix Ratio: | 2:1 by volume; 100:46 by weight |
| Specific Gravity: | Resin: 1.1; Hardener: 1 |
| Tack Free Time: | 160min @ low humidity |
| Tensile Strength: | 8,000 psi |
| Viscosity: | Resin: 9,000 to 12,000 @ 25 °C; Hardener: 1,500 to 9,000 @ 25 °C |
| Working Time: | 30min |
-
