Part number: 237119
Due to raw material shortages, this product is unavailable to purchase on the web. Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

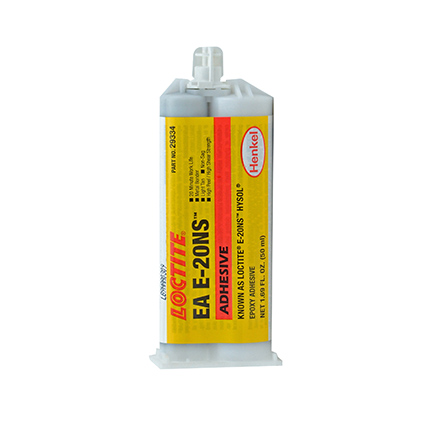

Henkel Loctite EA E-20NS is a non-sag, high peel, high shear, industrial grade epoxy adhesive. When cured it is resistant to a wide range of chemicals and solvents, and acts as an excellent electrical insulator. 50 mL Cartridge.
| Typical Use: | Develops strong, tough bonds on aluminum, stainless steel and other metals, as well as glass, ceramics, and plastics. Its non-sagging formula is well suited for use on vertical surfaces to avoid run-off. |
| Chemical Composition: | Resin: Epoxy; Hardener: Amine |
| Color: | Tan |
| Components: | 2 part |
| Cure System: | Room Temperature |
| Cure Time: | Up to 24h @ room temperature |
| Dielectric Strength: | 24 kV/mm |
| Elongation: | 4% |
| Flash Point: | >93 °C |
| Hardness: | 84 to 94 D |
| Mix Ratio: | 2:1 by volume; 100:48 by weight |
| Specific Gravity: | 1.43 @ 25 °C |
| Tack Free Time: | 20min |
| Tensile Strength: | 3,335 psi |
| Viscosity: | Resin: 80,000 to 280,000; Hardener: 30,000 to 90,000 |
| Working Time: | 20min |
-
Part #: EAD50MS-11/21
