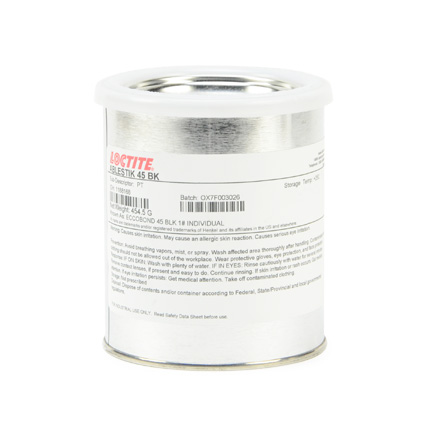

Henkel Loctite Ablestik 45 Epoxy Adhesive Resin Black 1 lb Can

Part number: 45 BLK 1LB RESIN ONLY Manufacturer SKU: 1188168
Henkel Loctite Ablestik 45 Epoxy Adhesive Resin Black 1 lb Can

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

Henkel Loctite Ablestik 45 Black, formerly Emerson and Cuming ECCOBOND, is a two component, heat curing, unfilled, epoxy adhesive system that is used for general purpose, assembly applications. It offers controlled flexibility, non-conductive properties, and is easy to use. 1 lb Can.

Henkel Loctite Ablestik 45 Black, formerly Emerson and Cuming ECCOBOND, is a two component, heat curing, unfilled, epoxy adhesive system that is used for general purpose, assembly applications. It offers controlled flexibility, non-conductive properties, and is easy to use. 1 lb Can.
Typical Use: Used as a general purpose adhesive and is particularly useful when bonding dissimilar substrates such as metal to plastic.
Brand: Ablestik
Chemical Composition: Epoxy
Color: Black
Components: 2 part
Cure System: Room Temperature/Heat
Cure Time: 16 to 24h @ 25 °C; 4 to 6h @ 45 °C; 2 to 4h @ 65 °C; 15 to 30min @ 105 °C
Dielectric Strength: 14 kV/mm
Flash Point: >93 °C
Hardness: Rigid: 80 D; Semi-rigid: 60 to 70 D, Flexible: 60 D
Mix Ratio: Rigid: 100:50 by weight; Semi-rigid: 100:100 by weight; Flexible: 100:150 by weight
Service Temperature: Rigid: -40 to 90 °C; Semi-rigid: -55 to 80 °C; Flexible: -55 to 65 °C
Shear Strength: Rigid: 2,500 @ 25 °C; Semi-rigid: 1,900 @ 25 °C; Flexible: 600 @ 25 °C
Specific Gravity: Rigid: 1.34; Semi-rigid: 1.24; Flexible: 1.18
Thermal Conductivity: 0.35 W/mK
Viscosity: Rigid: 37,000; Semi-rigid: 37,000; Flexible: 36,000
Volume Resistivity: Rigid: 1 x 10^13 ohm-cm; Semi-rigid: 1 x 10^13 ohm-cm; Flexible: 1 x 10^10 ohm-cm
Working Time: Rigid: 120min @ 25 °C; Semi-rigid: 140min @ 25 °C; Flexible: 160min @ 25 °C
