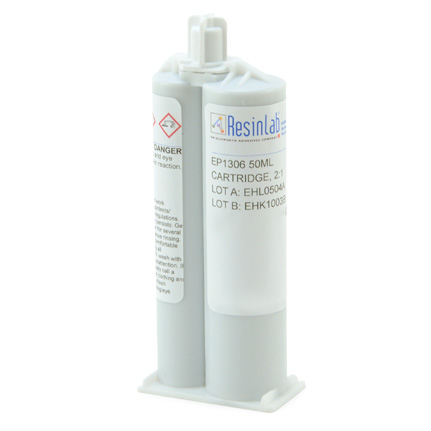

ResinLab EP1306 Acrylic Epoxy Adhesive Gray 50 mL Cartridge

Part number: EP1306 50ML
ResinLab EP1306 Acrylic Epoxy Adhesive Gray 50 mL Cartridge

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

ResinLab EP1306 Gray is a two component, room temperature and heat curing, acrylic/epoxy hybrid adhesive that has good adhesion and wetting to most surfaces. It is resistant to acids, bases, water and most organic solvents. 50 mL Cartridge.

<p>ResinLab EP1306 Gray is a two component, room temperature and heat curing, acrylic/epoxy hybrid adhesive that has good adhesion and wetting to most surfaces. It is resistant to acids, bases, water and most organic solvents. 50 mL Cartridge.</p>
Typical Use: Designed for use in side-by-side dispensing cartridges or meter/mix and dispense equipment.
Chemical Composition: Acrylic Epoxy
Color: Gray
Components: 2 part
Cure System: Room Temperature/Heat
Cure Time: 16 to 24h @ 25 °C; 1h @ 60 °C; 10min @ 100 °C
Dielectric Strength: 110 V/mil
Elongation: 0% to 1% @ break
Flash Point: Part A: >249 °C; Part B: >121 °C
Hardness: 80 D
Mix Ratio: 2:1 by volume; 2.07:1 by weight
Service Temperature: -40 to 150 °C
Shear Strength: 3,300
Specific Gravity: Mixed: 1.59
Tensile Strength: 4,500 psi
Thermal Conductivity: 0.9 W/mK
Viscosity: Mixed: 202,000
Volume Resistivity: 1.1 x 10^16 ohm-cm
