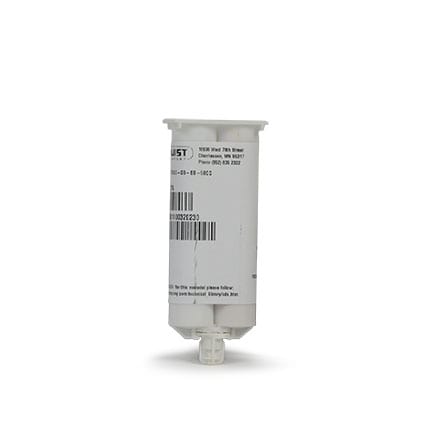

Bergquist Gap Filler 1500 Thermally Conductive Adhesive Yellow 50 cc Cartridge

Part number: GAP FILLER 1500 50CC Manufacturer SKU: GF1500-00-60-50CC
Bergquist Gap Filler 1500 Thermally Conductive Adhesive Yellow 50 cc Cartridge

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

Bergquist Gap Filler 1500 Thermally Conductive Adhesive is a two component, liquid gap filling material that is designed as a form-in-place elastomer for fragile electronic assemblies and filling difficult air voids and gaps. It offers excellent shear thinning characteristics, slump resistance, mechanical and chemical stability. Gap Filler 1500 is not designed to be a structural adhesive. 50 cc Cartridge.

<p>Bergquist Gap Filler 1500 Thermally Conductive Adhesive is a two component, liquid gap filling material that is designed as a form-in-place elastomer for fragile electronic assemblies and filling difficult air voids and gaps. It offers excellent shear thinning characteristics, slump resistance, mechanical and chemical stability. Gap Filler 1500 is not designed to be a structural adhesive. 50 cc Cartridge.</p>
Typical Use: Designed as a form-in-place elastomer for fragile electronic assemblies and filling difficult air voids and gaps.
Brand: Gap Filler
Color: Part A: Yellow; Part B: White
Components: 2 part
Cure System: room temperature/heat
Cure Time: 5h @ 25 °C and 10min @ 100 °C
Dielectric Strength: 400 V/mil
Hardness: 50 OO
Mix Ratio: 1:1
Thermal Conductivity: 1.8 W/mK
Viscosity: 25
Volume Resistivity: 10^10 ohm-meter
Working Time: 60min @ 25 °C
