Part number: 1C51 LITER
Manufacturer SKU: 51552
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

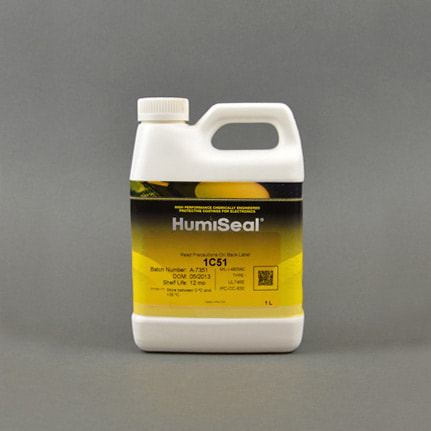

HumiSeal® 1C51 Silicone Conformal Coating is a one component, fast thermal curing, low viscosity coating that is flexible, VOC-free, and has a long pot life. It fluoresces under UV light to aid inspection and can be used by spraying, brushing, or dipping methods. 1 L Jug.
| Typical Use: | The low viscosity and long pot life of HumiSeal 1C51 make it ideal for dipping and spraying. |
| Chemical Composition: | Silicone |
| Components: | 1 part |
| Cure System: | Heat |
| Cure Time: | 10 to 15min @ 105 to 130 °C |
| Flash Point: | >121 °C |
| Key Specifications: | HumiSeal® 1C51 coating has a flammability rating of UL 94 V-0, MIL-I-46058C qualified, IPC-CC-830 and RoHS Directive 2002/95/EC compliant. |
| Specific Gravity: | 0.991 |
| Viscosity: | 630 ± 150 |
