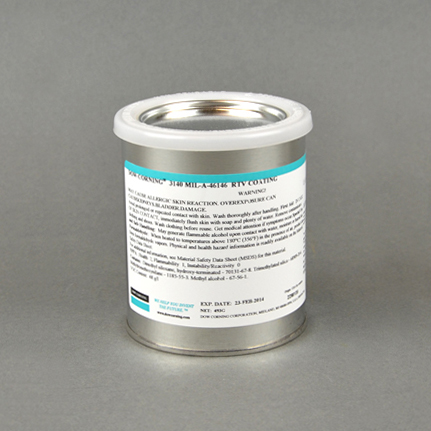

Dow DOWSIL™ 3140 RTV Silicone Conformal Coating Clear 493 g Can

Part number: 3140 493G MIL-A-46146 Manufacturer SKU: 2298139
Dow DOWSIL™ 3140 RTV Silicone Conformal Coating Clear 493 g Can

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

Dow DOWSIL™ 3140 RTV Coating Clear is a one component, room temperature curing, solvent free coating that is used for pin sealing, increased solder joint coverage, thin section encapsulation, and protecting sensitive components from corrosion. It is self leveling, flowable, and flame resistant. 493 g Can.

<p>Dow DOWSIL™ 3140 RTV Coating Clear is a one component, room temperature curing, solvent free coating that is used for pin sealing, increased solder joint coverage, thin section encapsulation, and protecting sensitive components from corrosion. It is self leveling, flowable, and flame resistant. 493 g Can.</p>
Typical Use: Supplied at a higher viscosity, this material cures to a tough, abrasion-resistant elastomer for improved pin/solder joint coverage and thin-section encapsulation.
Brand: DOWSIL
Color: Clear
Components: 1 part
Cure System: RTV
Cure Time: 24 to 72h @ room temperature
Dielectric Strength: 450 V/mil
Elongation: 420%
Flash Point: >101.1 °C
Hardness: 34 A
Key Specifications: MIL-I-46058C, Amend. 7, UL 94 V-1 If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distributor.
Specific Gravity: 1.05 @ 25 °C
Tack Free Time: 105min
Tensile Strength: 495 psi
Viscosity: 30,000
Volume Resistivity: 2.1 x 10^14 ohm-cm

If you require manufacturer certification, please request a quote.
