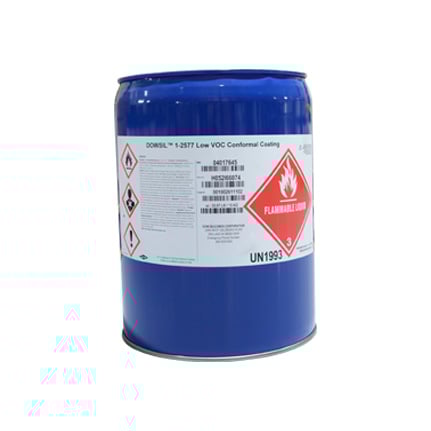

Dow DOWSIL™ 1-2577 Low VOC RTV Silicone Conformal Coating Clear 15 kg Pail

Part number: 1-2577 LOW VOC CTG 15KG Manufacturer SKU: 4017645
Dow DOWSIL™ 1-2577 Low VOC RTV Silicone Conformal Coating Clear 15 kg Pail

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

Dow DOWSIL™ 1-2577 Low-VOC Conformal Coating Clear is a one component, low viscosity, silicone resin coating that is used to protect electronic components from stress and abrasions. It is an RTV elastoplastic, solvent based, low odor, cures at room temperature, and has reduced VOC. 15 kg Pail.

<p>Dow DOWSIL&trade; 1-2577 Low-VOC Conformal Coating Clear is a one component, low viscosity, silicone resin coating that is used to protect electronic components from stress and abrasions. It is an RTV elastoplastic, solvent based, low odor, cures at room temperature, and has reduced VOC. 15 kg Pail.</p>
Typical Use: Protective coating for rigid and flexible circuit boards. A one-part, self priming coating cures to flexible, transparent coating ideally suited for electronic printed wiring board applications.
Brand: DOWSIL
Color: Clear
Components: 1 part
Cure System: RTV/Heat
Cure Time: 60min @ room temperature; 2min @ 60 °C
Dielectric Strength: 350 V/mil
Flash Point: 16.1 °C
Hardness: 25 D
Key Specifications: MIL-I-46058C, Amend. 7 If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distributor.
Service Temperature: -45 to 200 °C
Specific Gravity: 0.88 @ 25 °C
Tack Free Time: 6min
Viscosity: 1,000
Volume Resistivity: 1.9 x 10^14 ohm-cm
