Part number: 398454
Due to raw material shortages, this product is unavailable to purchase on the web. Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

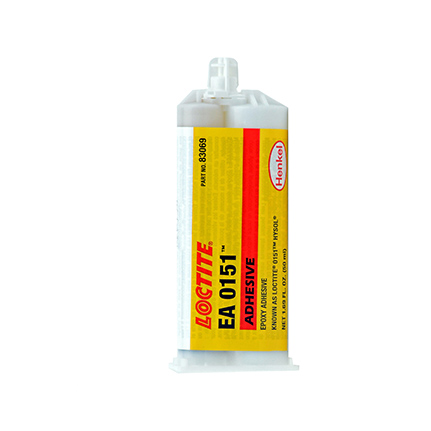

Henkel Loctite EA 0151 is a two component, thixotropic epoxy paste adhesive that has a long pot life and can either cure at room temperature or with heat. 50 mL Cartridge.
| Typical Use: | Used for general bonding of glass, metals, circuit boards, fiber optics, and many plastics. |
| Chemical Composition: | Epoxy |
| Color: | Clear |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 3d @ 25 °C; 2h @ 60 °C; 1h @ 82.2 °C |
| Dielectric Strength: | 1,080 V/mil |
| Elongation: | 2.4% |
| Flash Point: | Part A: >93.3 °C; Part B: >129.5 °C |
| Hardness: | 85 D |
| Mix Ratio: | 2.1:1 by volume; 100:33 by weight |
| Shear Strength: | 1,850 to 3,000 @ 25 °C |
| Specific Gravity: | Part A: 1.13; Part B: 0.98 |
| Thermal Conductivity: | 5.6 x 10^-4 |
| Viscosity: | Mixed: Thixotropic paste |
| Volume Resistivity: | 1.26 x 10^15 ohm-cm |
| Working Time: | 60min @ 25 °C |
-
