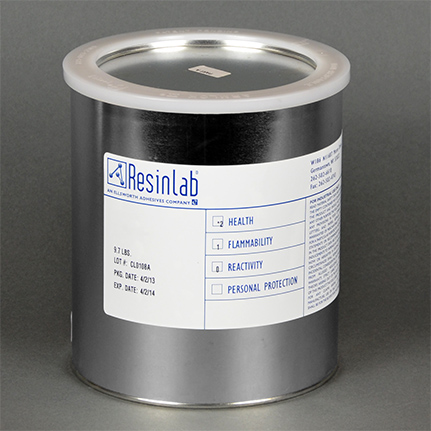

ResinLab EP1200 Epoxy Encapsulant Part A Black 1 gal Pail

Part number: EP1200 BLACK A GL
ResinLab EP1200 Epoxy Encapsulant Part A Black 1 gal Pail

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

ResinLab EP1200 Black is a two component, room temperature and heat curing, highly filled, casting resin that consists of an abrasive aluminum oxide filler. It offers high flexibility, medium viscosity, low CTE, and good thermal conductivity. Part A, 1 gal Pail.

ResinLab EP1200 Black is a two component, room temperature and heat curing, highly filled, casting resin that consists of an abrasive aluminum oxide filler. It offers high flexibility, medium viscosity, low CTE, and good thermal conductivity. Part A, 1 gal Pail.
Typical Use: Designed for applications requiring a high degree of thermal conductivity, flexibility and a low CTE.
Chemical Composition: Epoxy
Color: Black
Components: 2 part
Cure Time: 24 to 72h @ room temperature; 2h @ 65 °C; 30min @ 100 °C
Dielectric Strength: 540 V/mil
Elongation: 11%
Flash Point: >93 °C
Hardness: 75 D
Mix Ratio: 1:1 by volume; 1:1 by weight
Service Temperature: -40 to 150 °C
Shear Strength: 1,600
Specific Gravity: Part A: 2.01; Part B: 1.94; Mixed: 1.98
Tensile Strength: 1,400 psi
Thermal Conductivity: 0.6 W/mK
Viscosity: Part A: 32,000; Part B: 30,000; Mixed: 36,000
Volume Resistivity: 3.43 x 10^13 ohm-cm
Working Time: 23min
