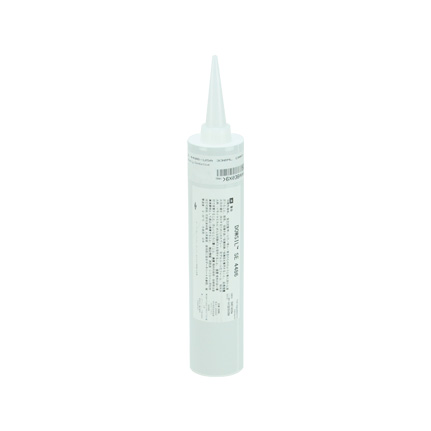

Dow DOWSIL™ SE 4486 CV Thermally Conductive Adhesive White 330 mL Cartridge

Part number: SE 4486-USA 330ML CART Manufacturer SKU: 4014354
Dow DOWSIL™ SE 4486 CV Thermally Conductive Adhesive White 330 mL Cartridge
Quantity Price
1 $2,574.20 ($257.42 each) 2574.200000000 CAD New Limited Availability SE 4486-USA 330ML CART
2 $2,149.40 ($214.94 each) 2149.400000000 CAD New Limited Availability SE 4486-USA 330ML CART
3+ $1,840.50 ($184.05 each) 1840.500000000 CAD New Limited Availability SE 4486-USA 330ML CART
Sold as a pack (10/pk).
Usually Ships in 2-3 Business Weeks. Subject to prior sales. Non-returnable product. Canceled orders may incur a fee at the supplier’s discretion. Product not sold online in Quebec.

Dow DOWSIL™ SE 4486 Thermally Conductive Adhesive is a one component, moisture and heat curing, silicone elastomer that is used for potting power supplies, attaching base plates and heat sinks. It offers good dielectric properties, stress relief, wide temperature range, and resistance to harsh environments. It is flowable, tack free, and has a controlled volatility. 330 mL Cartridge.

<p>Dow DOWSIL™ SE 4486 Thermally Conductive Adhesive is a one component, moisture and heat curing, silicone elastomer that is used for potting power supplies, attaching base plates and heat sinks. It offers good dielectric properties, stress relief, wide temperature range, and resistance to harsh environments. It is flowable, tack free, and has a controlled volatility. 330 mL Cartridge.</p>
Typical Use: Adhesive for power supply components, ink jet printer heads; bonding ICs with heat sinks.
Brand: DOWSIL
Color: White
Components: 1 part
Cure Time: 120h @ room temperature
Dielectric Strength: 13 kV/mm
Flash Point: 74 °C
Hardness: 78 A
Service Temperature: -45 to 200 °C
Shear Strength: 200
Specific Gravity: 2.57 @ 25 °C
Tensile Strength: 551 psi
Thermal Conductivity: 1.53 W/mK
Viscosity: 25,000
Volume Resistivity: 2e + 14 ohm-cm
Working Time: <4min @ room temperature
