Part number: 182 SIL ELAST KIT 3.9KG
Manufacturer SKU: 2065657
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

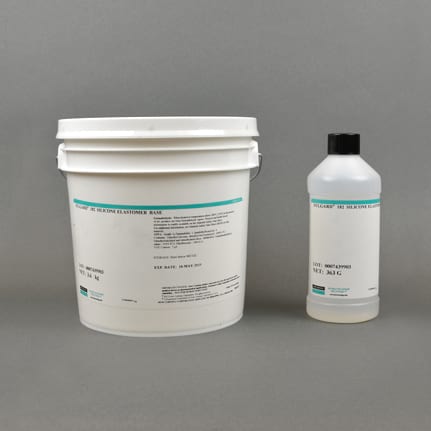

Dow SYLGARD™ 182 Silicone Elastomer Clear is a two component, heat curing encapsulant that is used as a protective coating for electrical applications such as power supplies, transformers, sensors, amplifiers, and connectors. It provides flexibility, low stress, easy to repair, long pot life, and good dielectric properties. 10:1 mix ratio by weight or volume. 3.9 kg Kit.
| Typical Use: | General potting applications: power supplies, connectors, sensors, industrial controls, transformers, amplifiers, high voltage resistor packs, relays; adhesive/encapsulant for solar cells; adhesive handling beam lead integrated circuits during processing. |
| Brand: | SYLGARD |
| Color: | Clear |
| Components: | 2 part |
| Cure System: | Heat |
| Cure Time: | 45min @ 100 °C |
| Dielectric Strength: | 475 V/mil |
| Flash Point: | 93 °C |
| Hardness: | 51 A |
| Key Specifications: | MIL-I-81550C, UL 94 V-0 If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distributor. |
| Mix Ratio: | 10:1 |
| Service Temperature: | -45 to 200 °C |
| Specific Gravity: | 1.03 |
| Thermal Conductivity: | 0.16 W/mK |
| Viscosity: | 4,575 |
| Volume Resistivity: | 1.6 x 10^15 ohm-cm |
| Working Time: | >8h @ room temperature |
-
