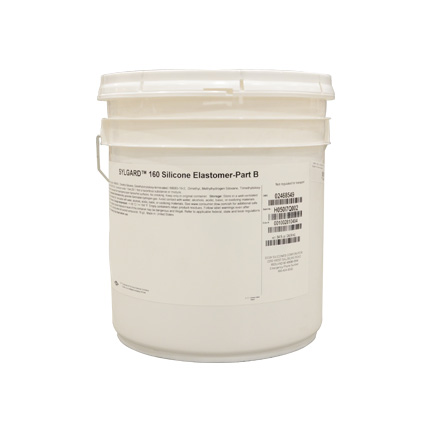

Dow SYLGARD™ 160 Silicone Encapsulant Part B Off-White 24.9 kg Pail

Part number: 160 SIL ELAST PT B 24.9KG Manufacturer SKU: 2468549
Dow SYLGARD™ 160 Silicone Encapsulant Part B Off-White 24.9 kg Pail
Quantity Price
1 $29,602.08 ($1,233.42 each) 29602.080000000 CAD New Limited Availability 160 SIL ELAST PT B 24.9KG
2 $27,036.96 ($1,126.54 each) 27036.960000000 CAD New Limited Availability 160 SIL ELAST PT B 24.9KG
3+ $26,445.12 ($1,101.88 each) 26445.120000000 CAD New Limited Availability 160 SIL ELAST PT B 24.9KG
Sold as a pack (24/pk).
Usually Ships in 2-3 Business Weeks. Subject to prior sales. Non-returnable product. Canceled orders may incur a fee at the supplier’s discretion. Product not sold online in Quebec.

Dow SYLGARD™ 160 Silicone Elastomer is a two component, room temperature or heat curing encapsulant that is used for general potting applications of power supplies. It has good flowability, moderate thermal conductivity, and flame resistance. 1:1 mix ratio. Part B, 24.9 kg Pail.

<p>Dow SYLGARD™ 160 Silicone Elastomer is a two component, room temperature or heat curing encapsulant that is used for general potting applications of power supplies. It has good flowability, moderate thermal conductivity, and flame resistance. 1:1 mix ratio. Part B, 24.9 kg Pail.</p>
Typical Use: General potting applications: power supplies, connectors, sensors, industrial controls, transformers, amplifiers, high voltage resistor packs, relays.
Brand: SYLGARD
Color: Off-White
Components: 2 part
Cure System: Room Temperature/Heat
Cure Time: 24h @ 25 °C; 4min @ 100 °C
Dielectric Strength: 19 kV/mm
Flash Point: >101.1 °C
Hardness: 56 A
Key Specifications: UL 94 V-0
Mix Ratio: 1:1 by volume; 1:1 by weight
Service Temperature: -45 to 200 °C
Specific Gravity: Part B: 1.61 @ 25 °C; Mixed: 1.57
Thermal Conductivity: 0.62 W/mK
Viscosity: Part B: 3,950; Mixed: 8,775
Volume Resistivity: 5.6 x 10^14 ohm-cm
Working Time: 25min @ room temperature
