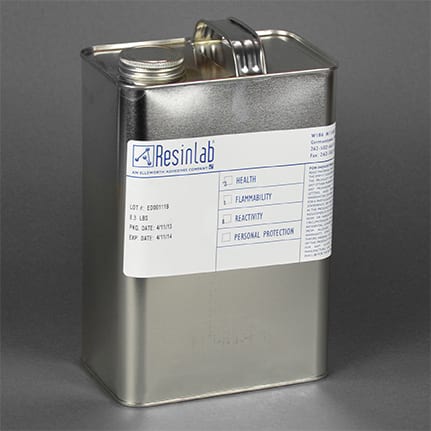

ResinLab EP1218 Epoxy Encapsulant Part B Clear 1 gal Pail

Part number: EP1218 - B GL Manufacturer SKU: EP1218 CLEAR B GL
ResinLab EP1218 Epoxy Encapsulant Part B Clear 1 gal Pail

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

ResinLab EP1218 Clear is a two component, room temperature curing, unfilled epoxy encapsulant that is used for medium to large castings. It is electronic grade, has very low viscosity, flexible, gives good air release, and has good wicking properties. It is resistant to bases, acids, water, and most organic solvents. Part B, 1 gal Pail.

ResinLab EP1218 Clear is a two component, room temperature curing, unfilled epoxy encapsulant that is used for medium to large castings. It is electronic grade, has very low viscosity, flexible, gives good air release, and has good wicking properties. It is resistant to bases, acids, water, and most organic solvents. Part B, 1 gal Pail.
Typical Use: Designed for medium to large sized castings.
Chemical Composition: Epoxy
Color: Clear
Components: 2 part
Cure System: Room Temperature/Heat
Cure Time: 2d @ 25 °C; 7h @ 50 °C; 6h @ 65 °C; 30m @ 100 °C
Dielectric Strength: 420 V/mil
Elongation: 80%
Flash Point: >121 °C
Hardness: 85 to 90 A
Mix Ratio: 1:1 by volume; 1.12:1 by weight
Service Temperature: -40 to 121 °C
Specific Gravity: Part B: 0.98; Mixed: 1.04
Tensile Strength: 400 psi
Viscosity: Part B: 400; Mixed: 450
Working Time: >4h
