Part number: EP1046FG BLACK 50ML
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

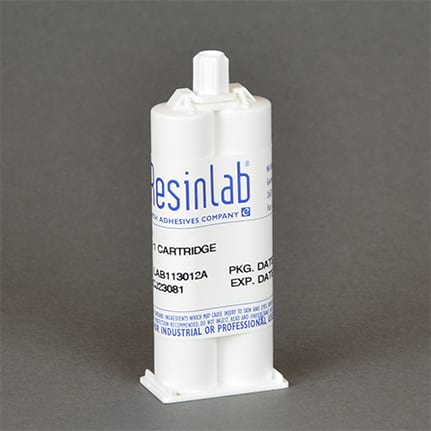

ResinLab EP1046FG Black is a two component, room temperature and heat curing, epoxy encapsulant that is used for small castings. It is electronic grade, semi-rigid, fast curing, low viscosity, and resistant to water and most solvents. 50 mL Cartridge.
| Typical Use: | Designed for small castings (less than 25 grams). |
| Chemical Composition: | Epoxy/acrylate |
| Color: | Black |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 1 to 2h @ room temperature; 30min @ 65 °C; 10min @ 100 °C |
| Dielectric Strength: | 410 V/mil |
| Elongation: | 5% @ break |
| Hardness: | 80 D |
| Mix Ratio: | 1:1 by volume; 1.19:1 by weight |
| Service Temperature: | -40 to 150 °C |
| Specific Gravity: | Mixed: 1.06 |
| Tensile Strength: | 5,000 psi |
| Thermal Conductivity: | 0.1 W/mK |
| Viscosity: | Mixed: 1,800 |
| Volume Resistivity: | 5.2 x 10^15 ohm-cm |
