Part number: Q3-3600 A/B ENCAP 4KG KIT
Manufacturer SKU: 2170493
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

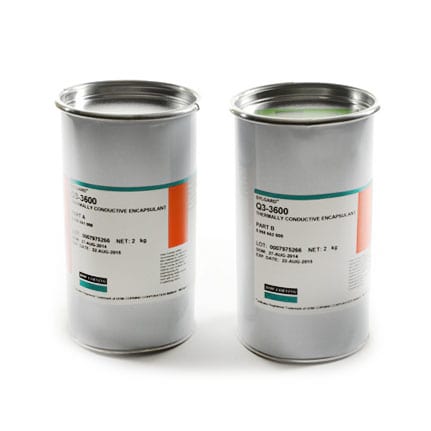

Dow SYLGARD™ Q3-3600 Thermally Conductive Encapsulant Gray is a two component, heat curing, silicone adhesive that is used to improve thermal transfers of cooling mechanisms in the industrial and automotive industries. It provides high flowability, long working times, low viscosity, flame resistance, and self-leveling. 4 kg Kit.
| Typical Use: | Potting of high voltage transformers and sensors; assembly of hybrid substrates to heat sinks |
| Brand: | SYLGARD |
| Color: | Gray |
| Components: | 2 part |
| Cure Time: | 30min @ 150 °C; 60min @ 100 °C |
| Dielectric Strength: | 26 kV/mm |
| Elongation: | 55% |
| Hardness: | 87 A |
| Mix Ratio: | 1:1 |
| Specific Gravity: | Mixed: 2.13 |
| Tensile Strength: | 957 psi |
| Thermal Conductivity: | 0.77 W/mK |
| Viscosity: | Mixed: 4,700 |
| Volume Resistivity: | 1e + 13 ohm-cm |
| Working Time: | 24h @ room temperature |
