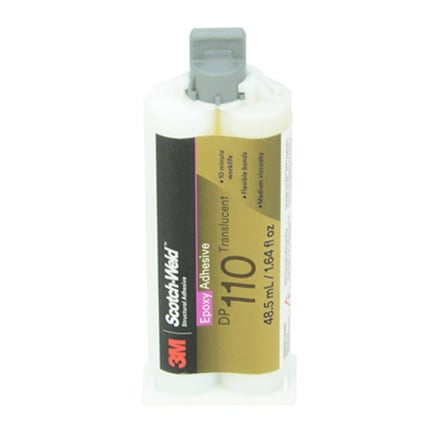

3M Scotch-Weld Epoxy Adhesive DP110 Clear is a two component, fast curing, epoxy based resin that is used to bond metal and plastics. It offers a controlled flow, flexibility, and 20 minute handling time 48.5 mL Duo-Pak Cartridge.
Typical Use: | Colorless, fast setting, flexible, two-part adhesive with a 1:1 mix ratio for bonding many materials, such as metals, ceramics and many plastics. 9 minute worklife with handling strength in 20 minutes. |
Brand: | Scotch-Weld |
Chemical Composition: | Base: Modified epoxy; Accelerator: Amine |
Color: | Clear |
Components: | 2 part |
Cure System: | Room Temperature |
Cure Time: | 48h @ 24 °C |
Dielectric Strength: | 520 V/mil |
Elongation: | 40% |
Flash Point: | Base: 248.8 °C; Accelerator: 185 °C |
Hardness: | 40 D |
Mix Ratio: | 100:100 by volume; 100:99 by weight |
Peel Strength: | 20 piw @ 24 °C |
Specific Gravity: | Base: 1.13; Accelerator: 1.1 |
Thermal Conductivity: | 0.106 @ 45 °C |
Viscosity: | Base: 30,000 to 70,000; Accelerator: 30,000 to 70,000 |
Volume Resistivity: | 4.5 x 10^10 ohm-cm |
Working Time: | 8 to 13min @ 24 °C |
