Part number: DP105 CLEAR 48.5ML
Manufacturer SKU: 7100148733
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

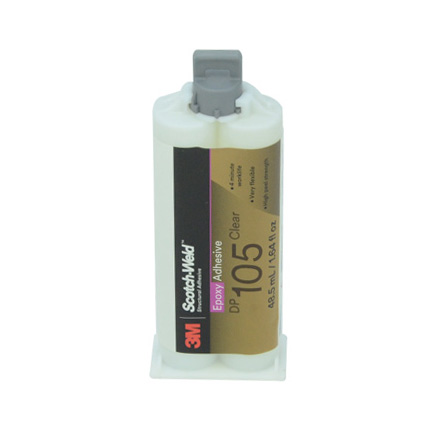

3M Scotch-Weld Epoxy Adhesive DP105 Clear is a two component, fast curing, epoxy sealant/adhesive that is used for bonding dissimilar surfaces that may be exposed to thermal expansion. It offers high peel strength and flexibility. 1:1 mix ratio by volume. 48.5 mL Duo-Pak Cartridge.
| Typical Use: | Ideal for bonding many substrates with different coefficients of expansion and contraction. |
| Brand: | Scotch-Weld |
| Chemical Composition: | Epoxy/mercaptan |
| Color: | Clear |
| Components: | 2 part |
| Cure System: | Room Temperature |
| Cure Time: | 48h @ 23 °C |
| Dielectric Strength: | 465 V/mil |
| Elongation: | 120% |
| Flash Point: | Base: 115.5 °C; Accelerator: 93.3 °C |
| Hardness: | 25 to 30 D |
| Mix Ratio: | 1:1 by volume; 1:0.97 by weight |
| Peel Strength: | 1 to 35 piw depending on temperature. |
| Specific Gravity: | Base: 1.11; Accelerator: 1.15 |
| Tack Free Time: | 10min |
| Tensile Strength: | 600 psi |
| Thermal Conductivity: | 0.085 @ 43.3 °C |
| Viscosity: | Base: 1,000 to 5,000; Accelerator: 8,000 to 16,000 |
| Volume Resistivity: | 1.5 x 10^10 ohm-cm |
| Working Time: | 4 to 5min @ 23 °C |
-
