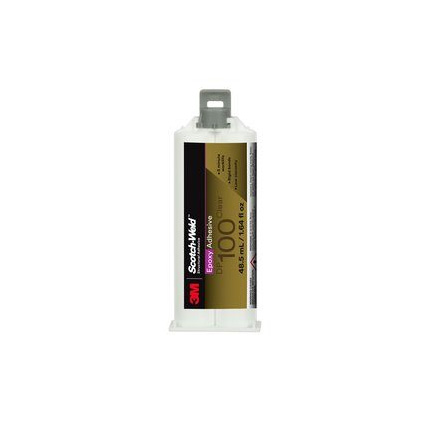

3M Scotch-Weld DP100 Epoxy Adhesive Clear 48.5 mL Duo-Pak Cartridge

Part number: DP100 CLEAR 48.5ML Manufacturer SKU: 7100148763
3M Scotch-Weld DP100 Epoxy Adhesive Clear 48.5 mL Duo-Pak Cartridge
Quantity Price
1 $421.20 ($35.10 each) 421.200000000 CAD New Limited Availability DP100 CLEAR 48.5ML
2 $360.60 ($30.05 each) 360.600000000 CAD New Limited Availability DP100 CLEAR 48.5ML
3+ $337.92 ($28.16 each) 337.920000000 CAD New Limited Availability DP100 CLEAR 48.5ML
Sold as a pack (12/pk).
Usually Ships in 2-3 Business Weeks. Subject to prior sales. Non-returnable product. Canceled orders may incur a fee at the supplier’s discretion. Product not sold online in Quebec.

3M Scotch-Weld Epoxy Adhesive DP100 Clear is a two component, fast curing, epoxy based resin that offers high flow, easy mixing, and machinability. 1:1 mix ratio by volume. 48.5 mL Duo-Pak Cartridge.

<p>3M Scotch-Weld Epoxy Adhesive DP100 Clear is a two component, fast curing, epoxy based resin that offers high flow, easy mixing, and machinability. 1:1 mix ratio by volume. 48.5 mL Duo-Pak Cartridge.</p>
Typical Use: Formulated and packaged for use in the EPX Applicator.
Brand: Scotch-Weld
Chemical Composition: Epoxy
Color: Clear
Components: 2 part
Cure System: Room Temperature
Cure Time: 24 to 48h @ 24 °C
Dielectric Strength: 860 V/mil
Flash Point: Base: 248.8 °C; Accelerator: 93.3 °C
Hardness: 80 to 85 D
Key Specifications: UL 94 HB
Mix Ratio: 1:1 by volume; 1:0.98 by weight
Peel Strength: 2 piw @ 23 °C
Specific Gravity: Base: 1.17; Accelerator: 1.13
Thermal Conductivity: 0.107 @ 46 °C
Viscosity: Base: 8,000 to 15,000; Accelerator: 9,000 to 16,000
Volume Resistivity: 3.5 x 10^12 ohm-cm
Working Time: 5min @ 23 °C
  • 3M Video - Scotch-Weld™ Structural Adhesives DP100 and DP100 Plus
