Part number: 9-911-REV. A 30ML MR SYR
Manufacturer SKU: 9-911-REV-A/30SYMR
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

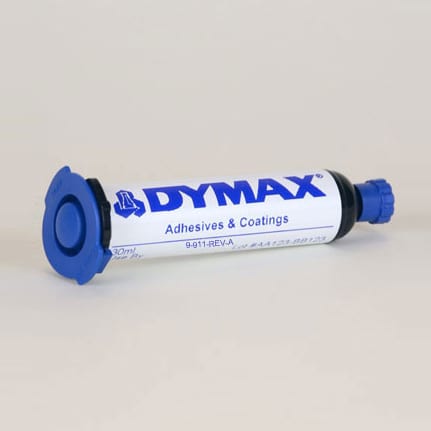

DYMAX Multi-Cure 9-911-Rev-A Wire Tacking Adhesive is a one component, UV light and heat curing, acrylated urethane that is used for tacking repair wires, PCB repairs, and bonding jumper wires on print circuit boards. It offers high strength bonds, high viscosity, and solvent resistance. 30 mL MR Syringe.
| Typical Use: | Dymax 9-911 Rev. A has excellent adhesion to a wide variety of surfaces. Especially well suited for fast fixturing, structural wire tacking, and component ruggedization. |
| Brand: | Multi-Cure |
| Chemical Composition: | Urethane Methacrylate |
| Color: | Clear |
| Cure System: | UV |
| Cure Time: | Actual cure time typically is 3 to 5 times fixture time. |
| Dielectric Strength: | 1,600 V/mil |
| Elongation: | 26% |
| Flash Point: | >93.3 °C |
| Hardness: | 80 D |
| Viscosity: | 36,000 |
| Volume Resistivity: | 80 x 10^12 ohm-cm |
-
-
