Part number: 96-083 SILICONE ADH 3.9KG
Manufacturer SKU: 2646676
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

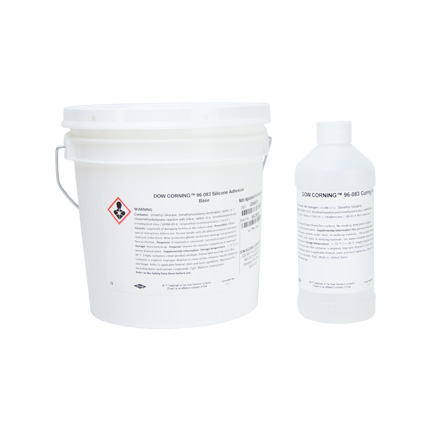

Dow 96-083 Silicone Adhesive Clear is a two component, heat curing adhesive that is used for repairs and bonding a variety of materials such as glass, metals, plastics, and ceramics. It offers high tensile strength, flowability, low viscosity, self-leveling, and contains no added solvents. 10:1 mix ratio. 3.9 kg Kit.
| Typical Use: | Bonding of ceramic integrated circuit modules to aluminum base plates, components in power equipment, glass to plastics, glass structural components. |
| Color: | Clear |
| Components: | 2 part |
| Cure System: | Heat |
| Cure Time: | 30min @ 150 °C |
| Dielectric Strength: | 450 V/mil |
| Elongation: | 120% |
| Flash Point: | Base: 246 °C; Curing agent: 121.1 °C |
| Hardness: | 55 A |
| Mix Ratio: | 10:1 |
| Service Temperature: | -45 to 200 °C |
| Shear Strength: | 850 |
| Specific Gravity: | 1.08 @ 25 °C |
| Tensile Strength: | 840 psi |
| Viscosity: | Part A: 10,600; Part B: 275 |
| Working Time: | 2h |
-
