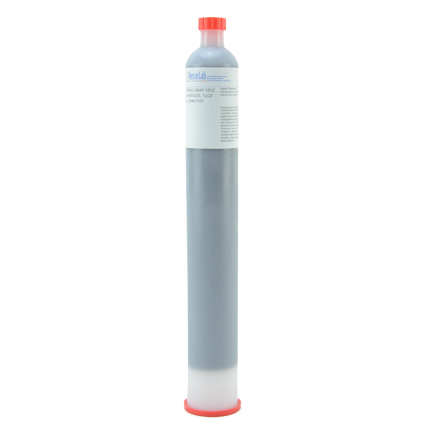

ResinLab EP950G Epoxy Adhesive Gray 12 oz Cartridge

Part number: EP950G GRAY 12OZ
ResinLab EP950G Epoxy Adhesive Gray 12 oz Cartridge

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

ResinLab EP950G Gray is a one component, heat curing, paste-like epoxy that is used for bonding structural materials. It is rubber modified, aluminum filled, medium viscosity, and reduces stress on components. 12 oz Cartridge.

<p>ResinLab EP950G Gray is a one component, heat curing, paste-like epoxy that is used for bonding structural materials. It is rubber modified, aluminum filled, medium viscosity, and reduces stress on components. 12 oz Cartridge.</p>
Typical Use: Designed for bonding metal and other structural material subject to stress at elevated temperature.
Chemical Composition: Rubber modified epoxy
Color: Gray
Components: 1 part
Cure System: Heat
Cure Time: 2.5h @ 121 °C; 45min @ 135 °C; 40min @ 150 °C; 20min @ 177 °C
Dielectric Strength: 110 V/mil
Elongation: 8% to 10%
Flash Point: >93.3 °C
Hardness: 75 to 95 D
Peel Strength: 5 to 7 pli
Service Temperature: -40 to 175 °C
Shear Strength: 3,000
Specific Gravity: 1.36 to 1.40
Tensile Strength: 9,500 psi
Thermal Conductivity: 0.4 W/mK
Viscosity: 175,000 to 500,000
Volume Resistivity: 8 x 10^9 ohm-cm
