Part number: 398477
Due to raw material shortages, this product is unavailable to purchase on the web. Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

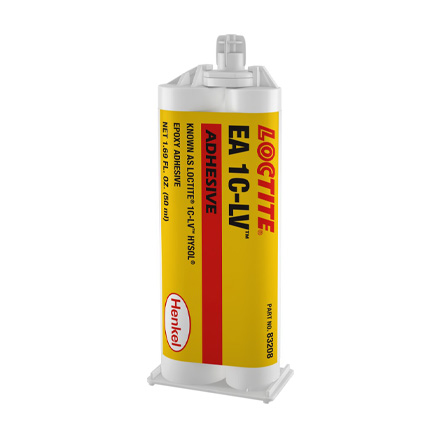

Henkel Loctite EA 1C-LV is a high temperature and chemical resistant adhesive that is a lower viscosity version of Loctite EA 1C. It bonds, seals and repairs a wide variety of materials. 50 mL Cartridge.
| Typical Use: | Hysol EA 1C-LV is a general purpose adhesive and sealant that bonds, seals and repairs a wide variety of materials. |
| Color: | Light tan |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 3d @ room temperature; 1h @ 82.2 °C |
| Dielectric Strength: | 450 V/mil |
| Elongation: | 3.5% |
| Flash Point: | Resin: >93 °C; Hardener: 101.7 °C |
| Hardness: | 75 D |
| Mix Ratio: | 2:1 by volume |
| Shear Strength: | 2,100 @ 25 °C |
| Specific Gravity: | 1.65 |
| Tensile Strength: | 2,800 psi |
| Viscosity: | Part A: 62,000 to 102,000; Part B: 20,000 to 52,500 |
| Working Time: | 20min @ 25 °C |
-
Part #: EAD50MS-11/21
