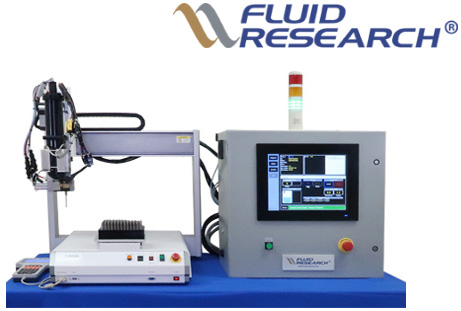

Fluid Research CM420 Dispensing System

The CM420 is a multi-component true rod, positive displacement metering machine designed for dispensing materials such as oils, extracts, vaping liquids, UV curables, RTV greases, heat cure urethanes, and epoxies. It incorporates a balanched inlet/outlet spool valve that delivers precise, controlled shot size and flow rates. It is abrasion resistant and can be easily integrated with other robots or automation.

For more information about Fluid Research and their products and services visit www.fluidresearch.com.



  • Positive rod displacement

  • One or two component variants

  • Servo motor or pneumatically driven for shots and beads

  • Manual or programmable shots volumes and flow rates

  • Single luer lock outlet or custom needle block

  • Volumetric output range from 0.07 cc to 7 cc (metering rod diameter dependent)

  • Available as a stand-alone unit or automation integrated

  • Can be fed from a variety of pressurized feeds sources such as cartridges, syringes, pressure pots, pressure tanks, or transfer pumps

  • Optional heated inlet block available

CM420 Dispensing System






0.07 cc - 0.83 cc


0.20 cc - 2.7 cc


0.6 cc - 7.5 cc



Want to learn more about the CM420 Dispensing System? Contact us today to see how we can integrate a dispensing system into your application process.


Request a Quote
