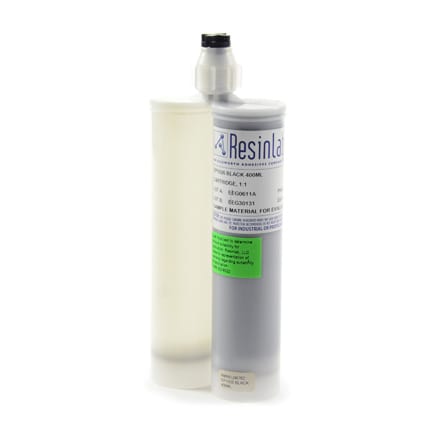

ResinLab EP1026 Epoxy Adhesive Black 400 mL Cartridge

Part number: EP1026 BLACK 400ML
ResinLab EP1026 Epoxy Adhesive Black 400 mL Cartridge

For current pricing and to place an order please contact your Ellsworth Customer Service Representative.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

ResinLab EP1026 Black is a two component, room and elevated temperature curing, unfilled adhesive that is used for bonding plastics, metal, and ceramics. It is semi-rigid, free flowing, and resistant to salt spray, water, and most organic and inorganic solvents. 1:1 mix ratio. 400 mL Cartridge.

ResinLab EP1026 Black is a two component, room and elevated temperature curing, unfilled adhesive that is used for bonding plastics, metal, and ceramics. It is semi-rigid, free flowing, and resistant to salt spray, water, and most organic and inorganic solvents. 1:1 mix ratio. 400 mL Cartridge.
Typical Use: Designed for high speed bonding of metals, ceramics, and most plastics. It cures to a tough semi-rigid material, and is free flowing in viscosity.
Chemical Composition: Part A: Epoxy resin; Part B: Epoxy hardener
Color: Black
Components: 2 part
Cure Time: 24h @ room temperature
Dielectric Strength: 410 V/mil
Elongation: 10% to 20% @ break
Flash Point: Part A: 252 °C; Part B: >93 °C
Hardness: 85 D
Mix Ratio: 1:1 by volume; 1:1 by weight
Service Temperature: -40 to 90 °C
Shear Strength: 2,500
Specific Gravity: Mixed: 1.14
Tensile Strength: 7,500 psi
Thermal Conductivity: 0.185 W/mK
Viscosity: Mixed: 15,500
Volume Resistivity: 8 x 10^14 ohm-cm
Working Time: 3 to 5min
