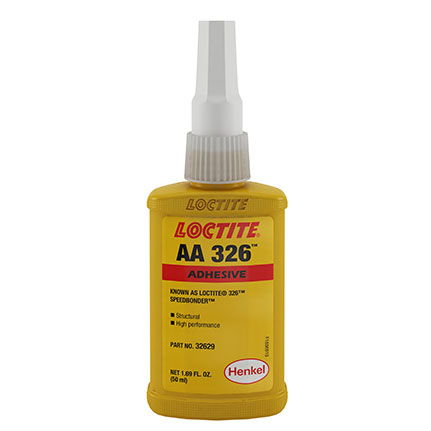

Henkel Loctite AA 326 Structural Adhesive 50 mL Bottle

Part number: 135402
Henkel Loctite AA 326 Structural Adhesive 50 mL Bottle

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.



Henkel Loctite AA 326 is a high viscosity, one component acrylic adhesive that is used for bonding ferrites to plated materials in electric motors, loudspeaker hardware, and jewelry where a quick fixture time is required. 50 mL Bottle.

<p>Henkel Loctite AA 326 is a high viscosity, one component acrylic adhesive that is used for bonding ferrites to plated materials in electric motors, loudspeaker hardware, and jewelry where a quick fixture time is required. 50 mL Bottle.</p>
Typical Use: Useful applications include bonding ferrites to plated metals in electric motors, loudspeaker hardware and jewelry where fast fixturing is required.
Chemical Composition: Polyurethane methacrylate
Color: Amber
Components: 1 part
Cure System: Anaerobic with Activator
Cure Time: Up to 72h depending on the substrate used, the bondline gap, and the temperature.
Dielectric Strength: 30 kV/mm
Elongation: 135% @ break
Flash Point: >93.3 °C
Shear Strength: 2,000 to 3,500
Specific Gravity: 1.1 @ 26.6 °C
Tensile Strength: 4,900 psi
Thermal Conductivity: 0.1 W/mK
Viscosity: 10,000 to 22,000 @ 25 °C
Volume Resistivity: 2 x 10^13 ohm-cm
